Flexible combinations for every welding application

Modular welding rotary table for automated welding processes

The SpeedFrame® impresses with its high load capacities and accelerates automated joining processes by decoupling component changes and welding operations. As a welding rotary table with a two-station system, it separates loading and unloading from machining with high repeat accuracy and minimal downtime.

The SpeedFrame® welding rotary table is a central component of the integrated SpeedLine® system solution and is not available as a stand-alone product. Its design, control system, and operating logic are fully optimized for combined operation with other modules within LEWA Attendorn's automated welding cells.

Your benefits with LEWA Attendorn

Move in sync. Transfer precisely. In less than two seconds.

The advantages of SpeedFrame®

Welding positioner for automated processes

The SpeedFrame® is a cycle-optimized welding positioner for automated series processes. It enables precise transfers, fast cycle times, and stable component fixation in two-station operation.

Timing

180-degree rotation in two seconds for quick switching between loading and unloading sides

Compact

Low space requirements thanks to direct integration into robot cells without additional support structures

Stable

Solid bearings and backlash-free rotary axes for reliable positioning even with heavy components

Modular

The structure, drive, and control system are designed for combined use with other SpeedLine® components.

Innovative features for flexible welding applications

Features of our SpeedFrame® welding rotary table

The SpeedFrame® is designed for maximum cycle performance and precise component transfer in automated welding cells. The rotatable clamping device reliably separates loading and unloading from the welding process and allows continuous operation without intermediate downtime.

Thanks to its compact design, high load capacity, and robot-guided control, the SpeedFrame® is the perfect basis for demanding series production. It is controlled directly via the robot controller, eliminating the need for additional control hardware.

Quick part replacement

The 180-degree rotation takes less than two seconds with a component weight of 500 kilograms per station. This reduces non-productive time and increases cycle performance in the automated process.

High load capacity

SpeedFrame® is available in three sizes with five load capacity variants. Depending on the configuration, the platform can move the following component weights:

  • 2 × 500 kilograms
  • 2 × 750 kilograms
  • 2 × 1,000 kilograms
  • 2 × 1,250 kilograms
  • 4 × 750 kilograms

Multi-station technology

The sizes can be combined with two or four stations. This allows both double-sided operating concepts and line solutions with parallel component guidance to be implemented technically.

Robot-based control

The SpeedFrame® is controlled via the existing robot control system. No additional control devices or external control cabinets are required.

Space-optimized integration

The compact drive system is consistently optimized for minimal installation space. All service points remain accessible, enabling short maintenance times during operation.

Other SpeedLine® solutions

SpeedCell®

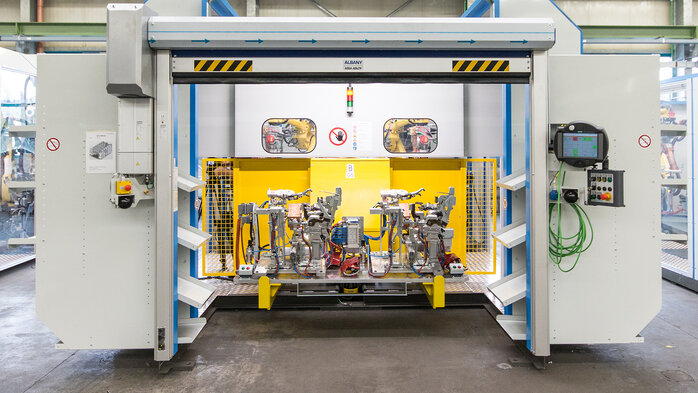

Modular welding cell for flexible robotic automation in industrial welding technology.

SpeedGun®

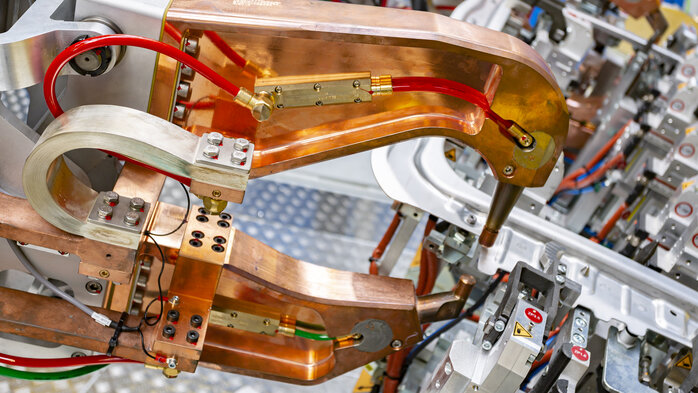

High-speed spot welding gun for automated welding processes in industrial manufacturing.
